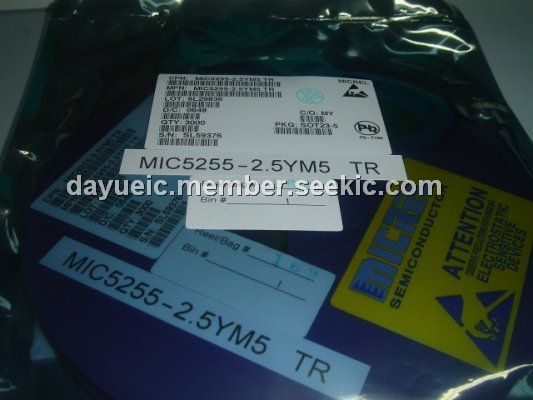

MIC5255-2.5YM5

precise CMOS voltage, regulator, 150mA, SOT23-5

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~0.68 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~0.68

PartNumber:: MIC5255-2.5YM5

Brand:: Micrel Semiconductor - Micrel | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Nate's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-29

From Other Seller

Part Number:MIC5255-2.5YM5
US $0.60 - 0.68
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MIC5255-2.5YM5 is an efficient, precise CMOS voltage regulator optimized for ultra-low-noise applications. It offers 1% initial accuracy, extremely low dropout voltage (135mV at 150mA) and low ground current (typically 90μA). The MIC5255-2.5YM5 provides a very low noise output, ideal for RF applications where a clean voltage source is required. A noise bypass pin is also available for further reduction of output noise.

Parametrics

Absolute maximum ratings: (1)Supply Input Voltage (VIN): 0V to +7V; (2)Enable Input Voltage (VEN): 0V to +7V; (3)Power Dissipation (PD): Internally Limited, Note 3; (4)Junction Temperature (TJ): –40℃ to +125℃; (5)Storage Temperature: –65℃ to +150℃; (6)Lead Temperature (soldering, 5 sec.): 260℃; (7)ESD: 2kV.

Features

Features: (1)Input voltage range: 2.7V to 6.0V; (2)Thin SOT package: 1mm height SOT-23-5; (3)Ultralow output noise: 30μv(rms); (4)Stability with ceramic output capacitors; (5)Ultralow dropout: 135mV @ 150mA; (6)High output accuracy: 1.0% initial accuracy; 2.0% over temperature; (7)Low quiescent current: 90μA; (8)Tight load and line regulation; (9)TTL-Logic-controlled enable input; (10)"Zero"off-mode current; (11)Thermal shutdown and current limit protection.
