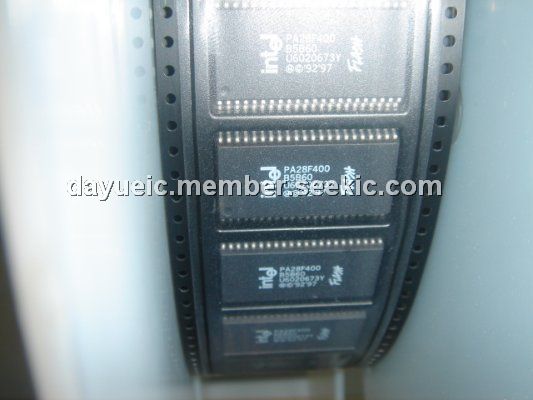

PA28F400B5B60

Smart 5 boot block memory, 8-bit operation, 12 V VPP, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~4.00

PartNumber:: PA28F400B5B60

Brand:: Intel Corporation - Intel | Pack: TSOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Nate's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-22

From Other Seller

Part Number:PA28F400B5B60
US $2.50 - 4.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PA28F400B5B60 is a member of the Smart 5 boot block memory family, which provides pinout-compatible flash memories at the 2-, 4-, and 8-Mbit densities. The PA28F400B5B60 can be configured to operate either in 16-bit or 8-bit bus mode, with the data divided into individually erasable blocks. It provides 8-bit operation in a compact package.

Parametrics

Absolute maximum ratings: (1)Commercial Operating Temperature: During Read/Erase/Program: 0 ℃ to +70 ℃; Temperature Under Bias: –10 ℃ to +80 ℃; (2)Extended Operating Temperature: During Read/Erase/Program: –40 ℃ to +85 ℃; Temperature Under Bias: –40 ℃ to +85 ℃; (3)Storage Temperature: –65 ℃ to +125 ℃; (4)Voltage on Any Pin(except VCC, VPP, A9 and RP#) with Respect to GND: –2.0 V to +7.0 V; (5)Voltage on Pin RP# or Pin A9 with Respect to GND: –2.0 V to +13.5 V; (6)VPP Program Voltage with Respect to GND during Block Erase and Word/Byte Program: –2.0 V to +14.0 V; (7)VCC Supply Voltage with Respect to GND: –2.0 V to +7.0 V; (8)Output Short Circuit Current: 100 mA.

Features

Features: (1)SmartVoltage Technology: Smart 5 Flash: 5 V Reads, 5 V or 12 V Writes; Increased Programming Throughput at 12 V VPP; (2)Very High-Performance Read: 2-, 4-Mbit: 60 ns Access Time; 8-Mbit: 70 ns Access Time; (3)x8 or x8/x16-Configurable Data Bus; (4)Low Power Consumption: Max 60 mA Read Current at 5 V; Auto Power Savings: <1 mA Typical Standby Current; (5)Optimized Array Blocking Architecture: 16-KB Protected Boot Block; Two 8-KB Parameter Blocks; 96-KB and 128-KB MaiBlocks; Top or Bottom Boot Locations; (6)Industry-Standard Packaging: 40, 48-Lead TSOP, 44-Lead PSOP; (7)Extended Block Erase Cycling: 100,000 Cycles at Commercial Temp; 10,000 Cycles at Extended Temp; (8)Hardware Data ProtectioFeature: Absolute Hardware-Protectiofor Boot Block; Write Lockout during Power Transitions.
