Product Summary
The SFH320FA is a silicon NPN phototransistor in SMT TOPLED-Package. It is used in miniature photointerrupters, punched tape readers, industrial electronics, control and drive circuits, etc.
Parametrics
Absolute maximum ratings: (1)Operating and storage temperature range, Top; Tstg: – 40 to + 100 ℃; (2)Collector-emitter voltage, VCE: 35 V; (3)Collector current, IC: 15 mA; (4)Collector surge current, τ < 10 μs, ICS: 75 mA; (5)Total power dissipation, TA = 25 ℃, Ptot: 165 mW; (6)Thermal resistance for mounting on pcb, RthJA: 450 K/W.
Features
Features: (1)Especially suitable for applications from 380 nm to 1150 nm (SFH 320) and of 880 nm; (2)High linearity; (3)P-LCC-2 package; (4)Available in groups; (5)Suitable for all soldering methods.

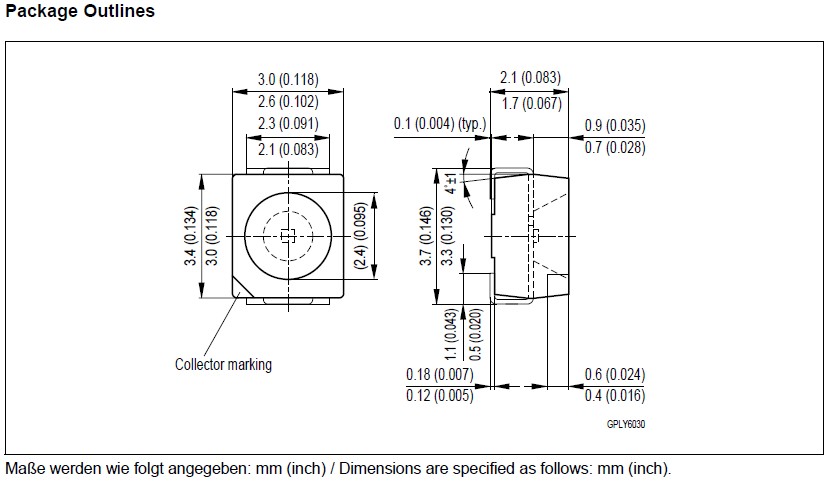

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SFH320FA |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
