Product Summary
The VN2406L is a 240V (D-S) N-Channel MOSFET. It takes advantage in low offset voltage, full voltage operation, easily driven without buffer and low error voltage.
Parametrics
Absolute maximum ratings: (1)Drain–Source Voltage, VDSS: 240V; (2)Gate–Source Voltage, Vgs: ±20V; (3)Continuous Drain current, Ta=25℃, Id: 0.18A; (4)Continuous Drain current, Ta=100℃, Id: 0.11A; (5)Pulsed Drain Current, IDM: 1.7A; (6)Power Dissipation @ TC = 25℃, PD: 0.8W; (7)Power Dissipation @ TC = 100℃, PD: 0.32W; (8)Operating junction and Storage Temperature TJ, Tstg: –55 to 150℃.
Features
Features: (1)Low On-Resistance: 3.5Ω; (2)Secondary Breakdown Free: 260V; (3)Low Power/Voltage Driven; (4)Low Input and Output Leakage; (5)Excellent Thermal Stability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

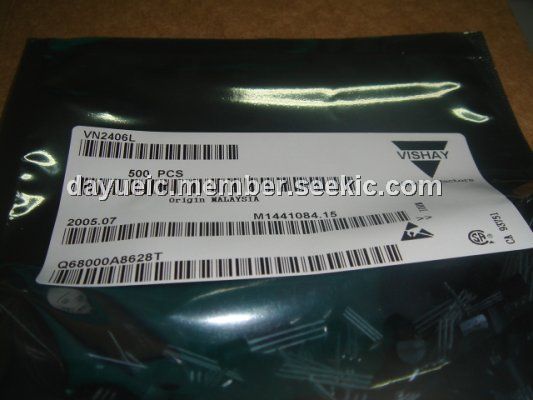

 VN2406L |
Vishay/Siliconix |
MOSFET 240V 0.18A 0.8W |
Data Sheet |
Negotiable |
|
||||||||||||
|
VN2406L-G |
Supertex |
MOSFET 240V 6Ohm |
Data Sheet |
|
|
||||||||||||
|
VN2406L-P003-G |
Supertex |
MOSFET 240V 6Ohm |
Data Sheet |
|
|
||||||||||||
|
VN2406L-P002-G |
Supertex |
MOSFET 240V 6Ohm |
Data Sheet |
|
|
||||||||||||
|
VN2406L-P003 |
Supertex |
MOSFET 240V 6Ohm |
Data Sheet |
Negotiable |
|
||||||||||||
|
VN2406L-P002 |
Supertex |
MOSFET 240V 6Ohm |
Data Sheet |
Negotiable |
|
||||||||||||
|
VN2406L-P014-G |
Supertex |
MOSFET 240V 6Ohm |
Data Sheet |
|
|
||||||||||||
|
VN2406L-P013-G |
Supertex |
MOSFET 240V 6Ohm |
Data Sheet |
|
|
||||||||||||
