Product Summary
The MD2202-D96 is the second-generation of M-Systems’ DiskOnChip series of products. The device provides a small, single-chip, solid-state flash disk in a standard 32-pin DIP package.
Parametrics
Absolute maximum ratings: (1)DC supply voltage:-0.5V to 4.6V; (2)Input pin voltage2:-0.5V to VCC + 0.3V; (3)Input pin current:Not Specified.
Features
Features: (1)Single-chip plug-n-play flash disk ; (2)Low power, single 3.3V or 5V power supply ; (3)16MB to 576MB capacity (1GB in 2002) ; (4)Pinout and structure compatible with DiskOnChip Millennium DIP 8MB ; (5)Simple, easy-to-integrate interface ; (6)32-pin DIP, JEDEC standard, EEPROM-compatible pinout ; (7)8KB sized memory window ; (8)Boot OS capability ; (9)Operates with DiskOnChip SDK in OS-less environments, ANSI-C source code kit ; (10)Error Detection and Correction (EDC/ECC) for higher data reliability ; (11)Low power consumption – Static Operation.

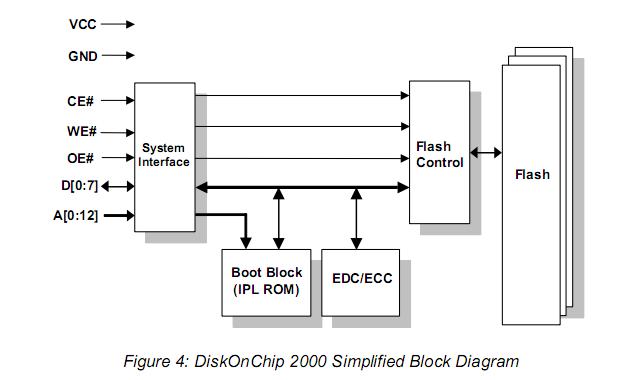

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MD2202-D96 |
|
IC DOC2000 96MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
|
MD2202-D96-V3 |
|
IC DOC2000 96MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
|
MD2202-D96-V3-X |
|
IC DOC2000 96MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
|
MD2202-D96-X |
|
IC DOC2000 96MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
|
MD2202-D96-X-P |
|
IC DOC2000 96MB 32-DIP |
Data Sheet |
Negotiable |
|
||||
