Product Summary
The K6X4008T1F-VF70 is a 512K×8 bit Low Power and Low Voltage CMOS Static RAM fabricated by SAMSUNG advanced full CMOS process technology. The device supports various operating temperature range and has various package types for user flexibility of system design. It also supports low data retention voltage for battery back-up operation with low data retention current.
Parametrics
Absolute maximum ratings: (1)Voltage on any pin relative to Vss, VIN, VOUT: -0.2 to VCC+0.3(max. 3.9V) V; (2)Voltage on Vcc supply relative to Vss, VCC: -0.2 to 3.9 V ; (3)Power Dissipation, PD: 1.0 W ; (4)Storage temperature, TSTG: -65 to 150 ℃.
Features
Features: (1)Process Technology: Full CMOS; (2)Organization: 512K×8; (3)Power Supply Voltage: 2.7~3.6V; (4)Low Data Retention Voltage: 2V(Min); (5)Three State Outputs; (6)Package Type: 32-SOP-525, 32-TSOP2-400F/R 32-TSOP1-0813.4F.

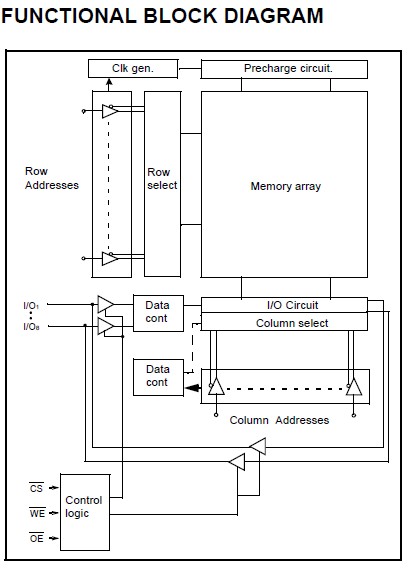

Diagrams
 |
