Product Summary
The LM709H series is a monolithic operational amplifier intended for general-purpose applications. Operation is completely specified over the range of voltages commonly used for these devices. The design, in addition to providing high gain, minimizes both offset voltage and bias currents. Further, the class-B output stage gives a large output capability with minimum power drain.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 300 mW; (3)Differential Input Voltage: ±5V; (4)Input Voltage: ±10V; (5)Output Short-Circuit Duration (TA = +25℃): 5 seconds; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature (Soldering, 10 sec.): 300℃.

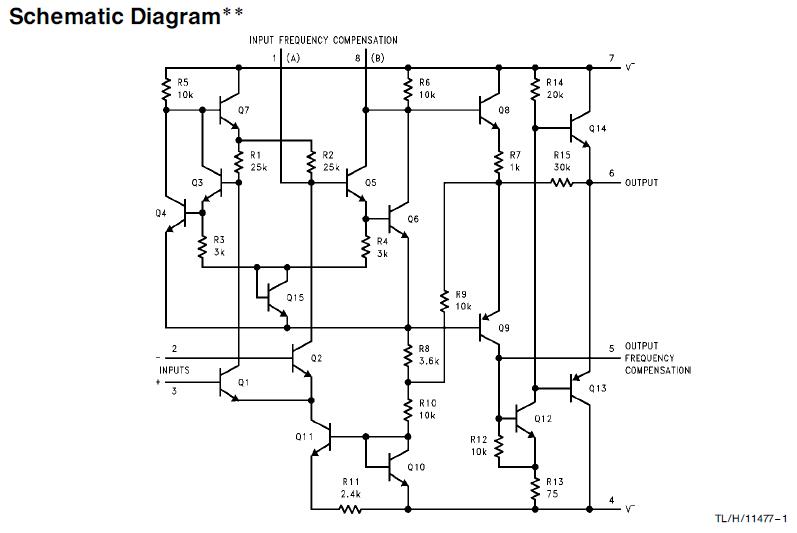

Diagrams
