Product Summary

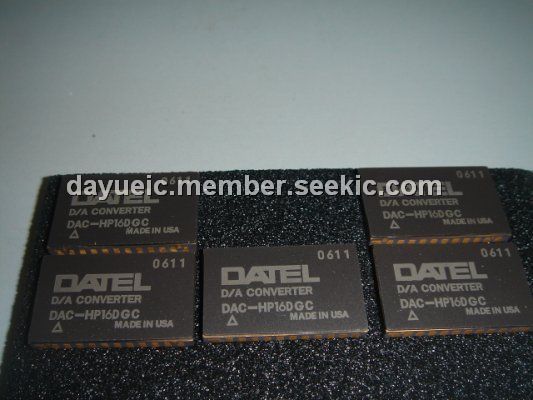

The DAC-HP16DGC is a high-resolution hybrid digital-to-analog converter with voltage outputs. The device has a 16-bit binary resolution with ±0.003% integral nonlinearity. The unit is self-contained, including a low-tempco Zener reference circuit and an output amplifier, in a miniature 24-pin DDIP package. The DAC-HP16DGC offers both unipolar and bipolar modes with outputs of 0 to +10V and ±5V respectively.
Parametrics
Absolute maximum Ratings: (1)Positive Supply, Pin 23: +18V; (2)Negative Supply, Pin 19: –18V; (3)Digital Input Voltage, Pins 1–16: +5.5V; (4)Output Current, Pin 17: ±20mA; (5)Lead Temperature (soldering, 10s): 300℃.
Features
Features: (1)16-Bit resolution; (2)3 Output voltage ranges; (3)±15ppm/℃ maximum gain tempco; (4)Integral nonlinearity error ±0.003%FSR, max; (5)14 Bits monotonic from +10℃ to +40℃; (6)High-reliability MIL-STD–883 models available.

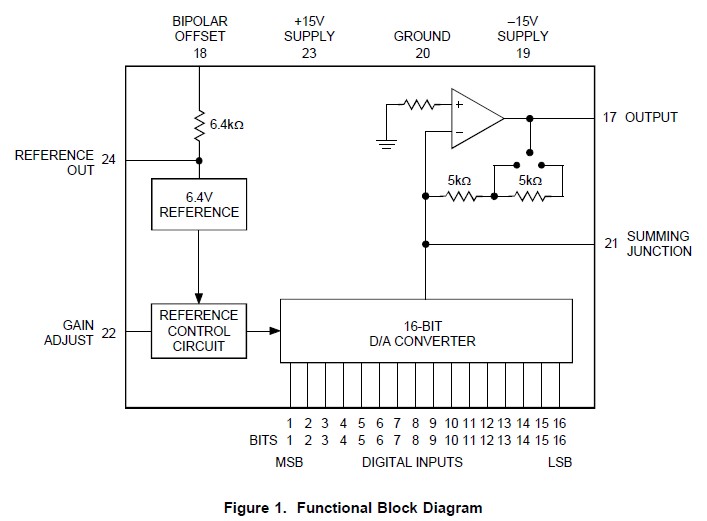

Diagrams
 |
